Tanker 11 Rider's Training

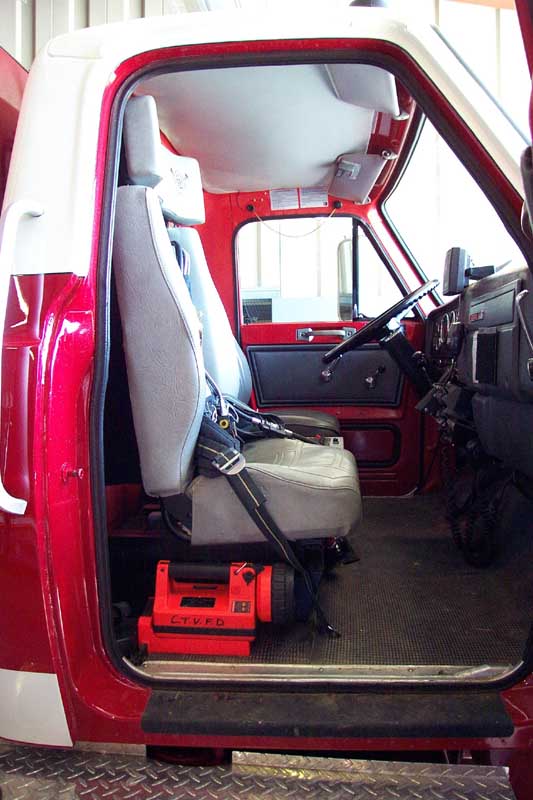

Driver's CompartmentDCP_1501.JPG (1020535 bytes)
  • Map book
  • Preplans book
  • Airpack (mounted in officer seat)
  • Flashlights
  • 800 MHz portable radio

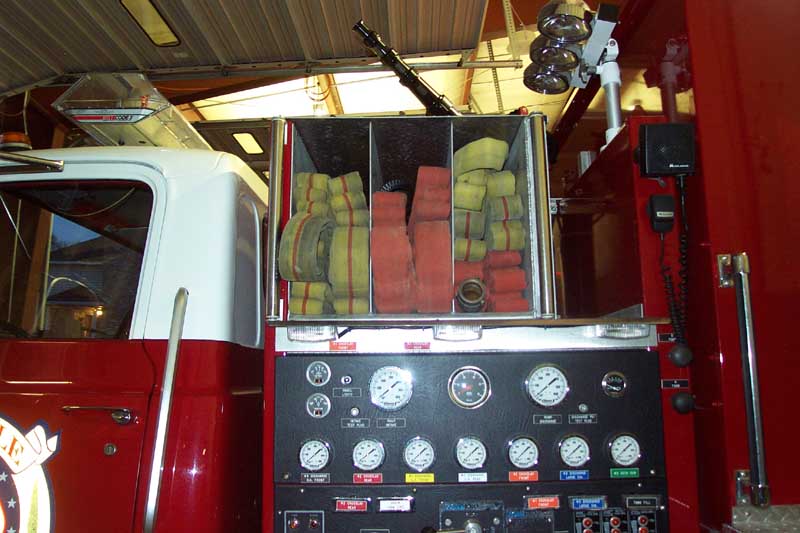

Crosslay hosebedsTanker 11 Hosebeds.JPG (915099 bytes)
  • 2 - preconnect 200' 1 3/4 handlines with combination nozzles
  • 1 - Unconnected 200' 1 3/4 hoseline

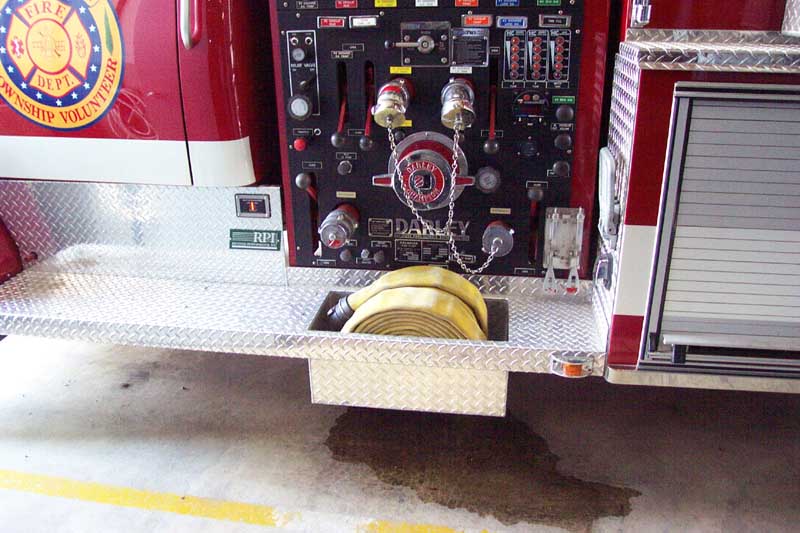

Driver Side TroughTanker 11 Driver's Side Trough.JPG (1228727 bytes)
  • 50' 2 1/2" hose in double donut roll

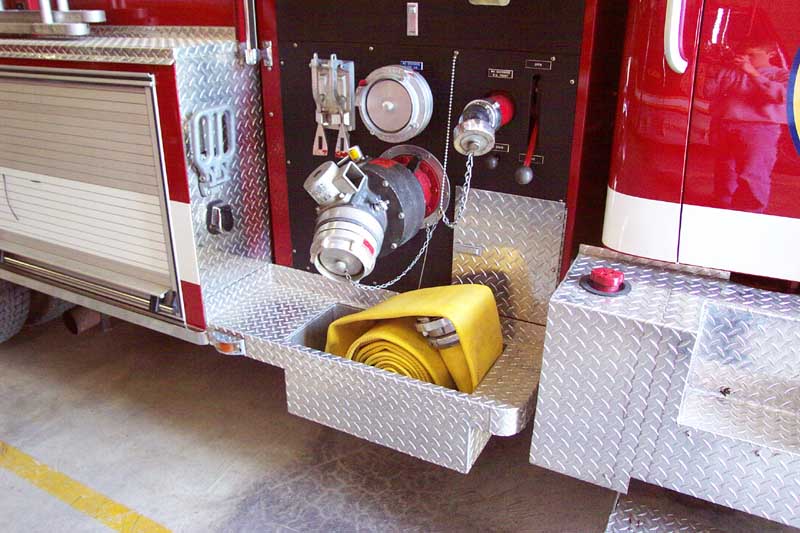

 Officer Side TroughTanker 11 Officer's Side Trough.JPG (1172938 bytes)
  • 25' section of 5" hose with storz connectors

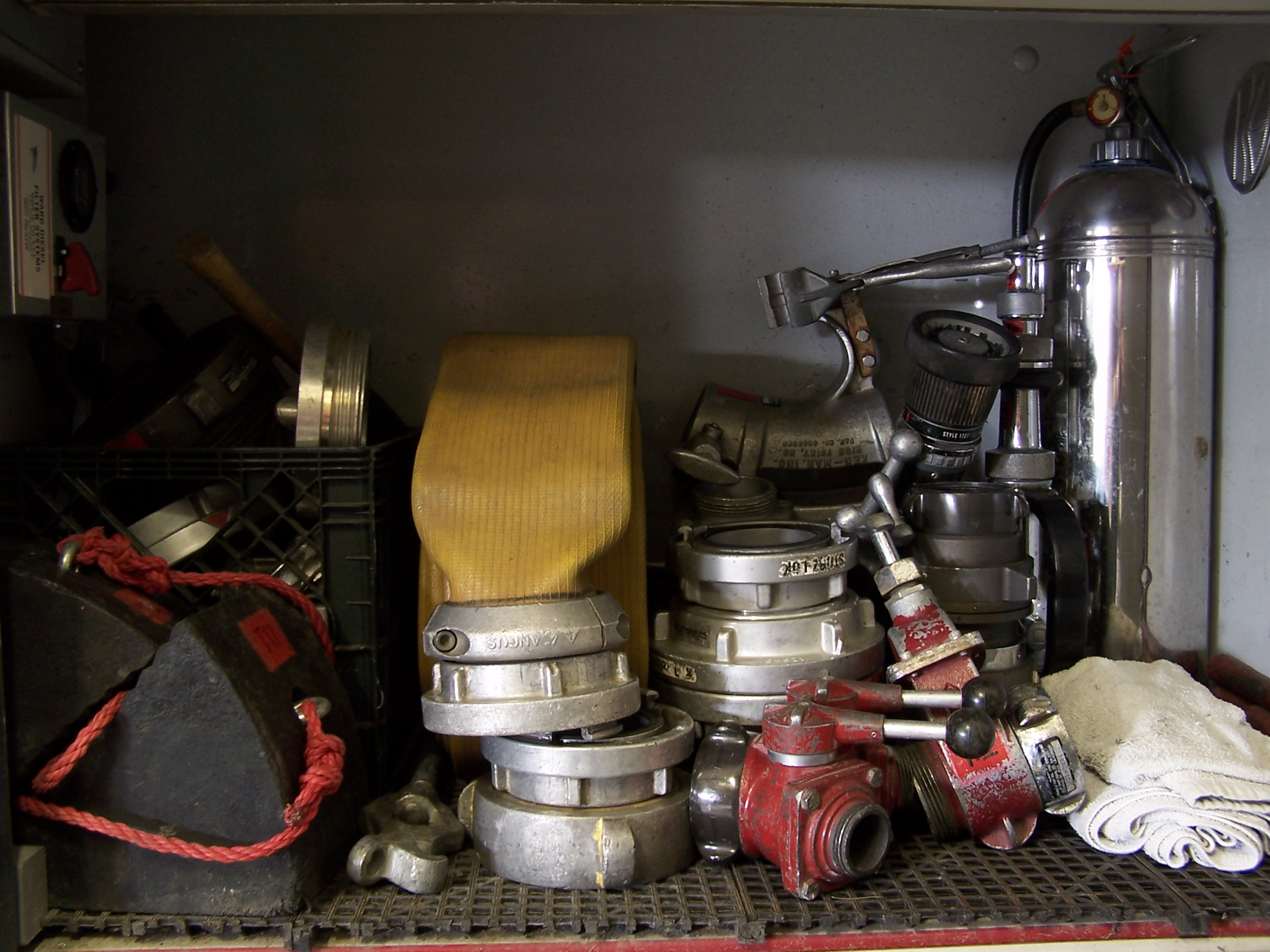

Compartment 1Tanker 11 Compartment 1.JPG (921012 bytes)
  • 25' of 4" hose storz supply hose
  • Hydrant wrench
  • Hydrant adaptors (threaded to storz)
  • Wheel Chocks
  • Rubber mallet
  • Spanner Wrenches
  • Jet siphon
  • Adaptors and couplings
  • PW extinguisher
  • Smooth bore nozzle
  • Towels (frequently used for Anhydrous Ammonia leaks)
  • Flares
  • 2 1/2" gate valve
  • 2 1/2" to 1 1/2" wye

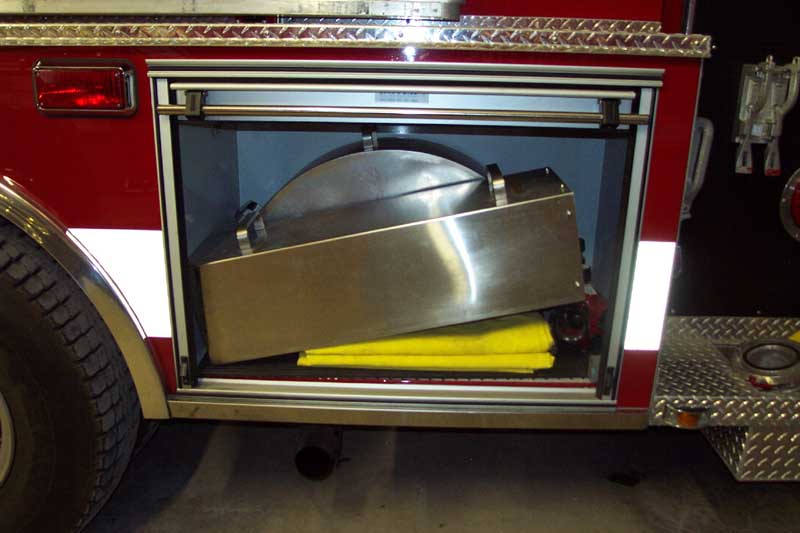

  		Compartment 3Tanker 11 Compartment 3.JPG (799694 bytes)
  • Yellow tarp for dumptank
  • Curved water shute extension
  • Straight water shute extension
  • Master stream platform

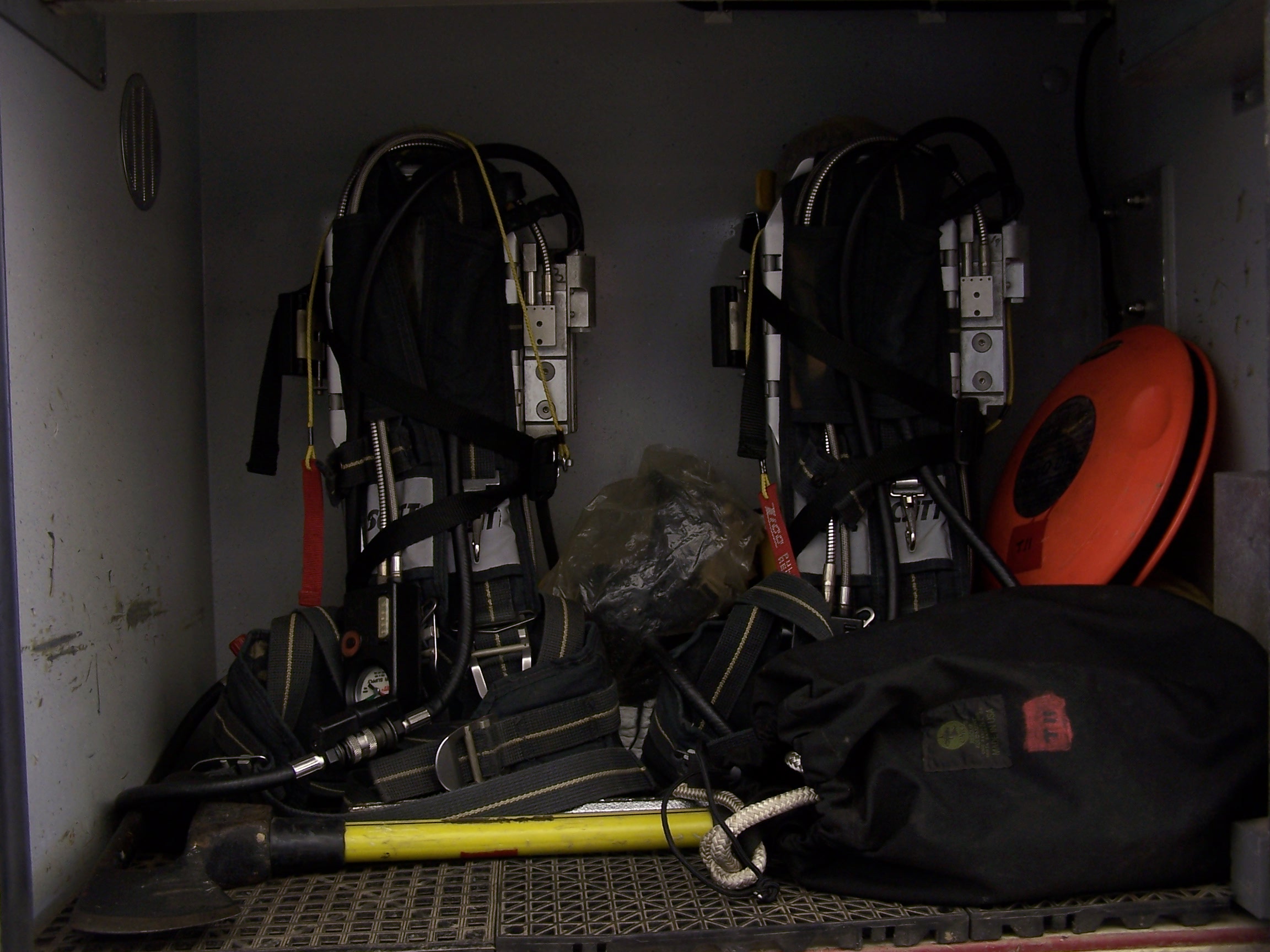

Compartment 2Tanker 11 Compartment 2.JPG (876882 bytes)
  • 2 Airpacks
  • 1 Medium Mask
  • TNT tool
  • Halogen bar
  • Rope bags
  • Rescue disk

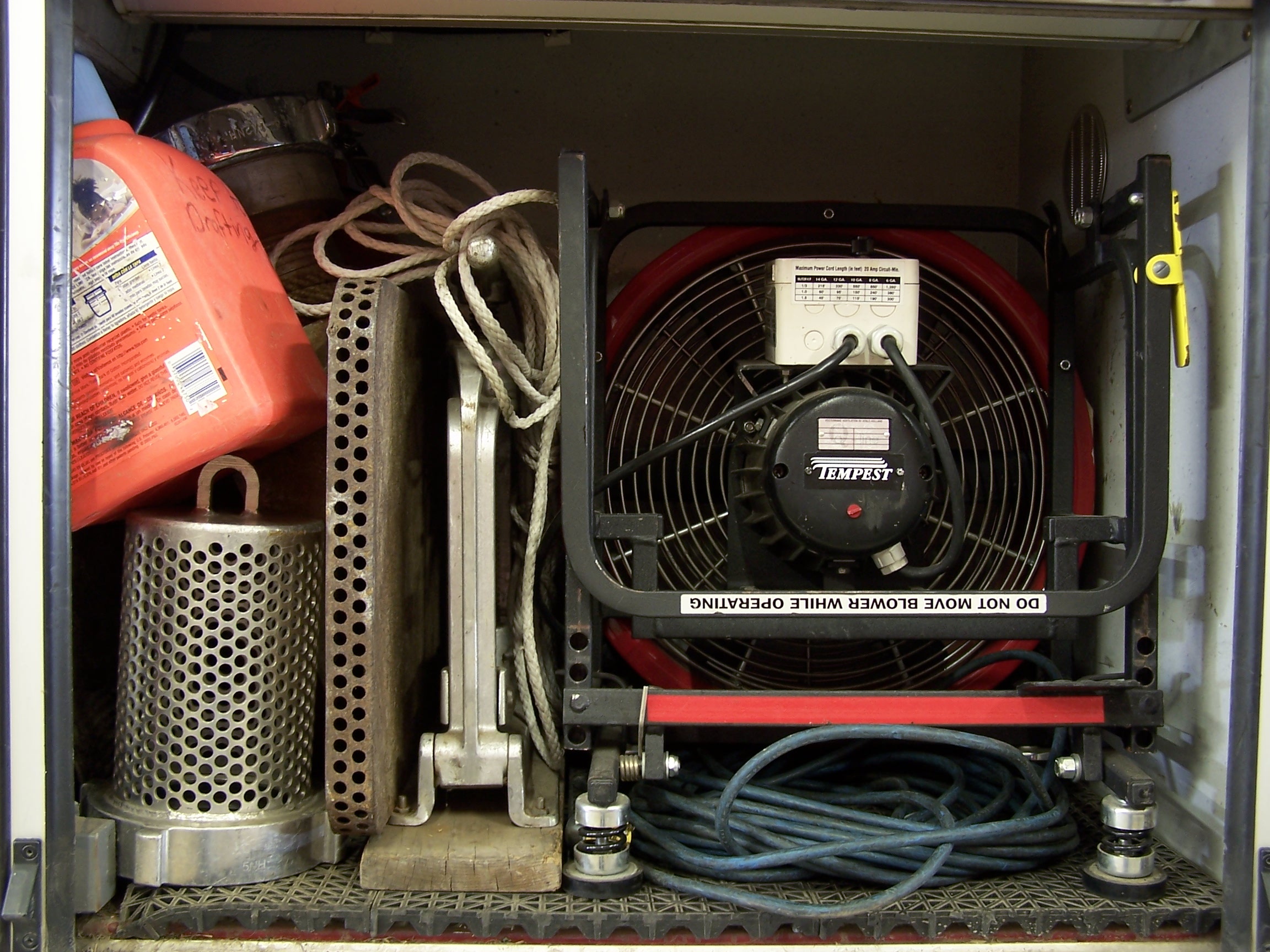

 Compartment 4Tanker 11 Compartment 4.JPG (869391 bytes)
  • Flat drafting strainer (low level strainer)
  • Barrel drafting strainer
  • Hose clamp
  • Ventilation fan
  • Extension cord
  • CO2 Extinguisher
  • White Utility Rope
  • Empty Laundry Soap Container (for flotation)

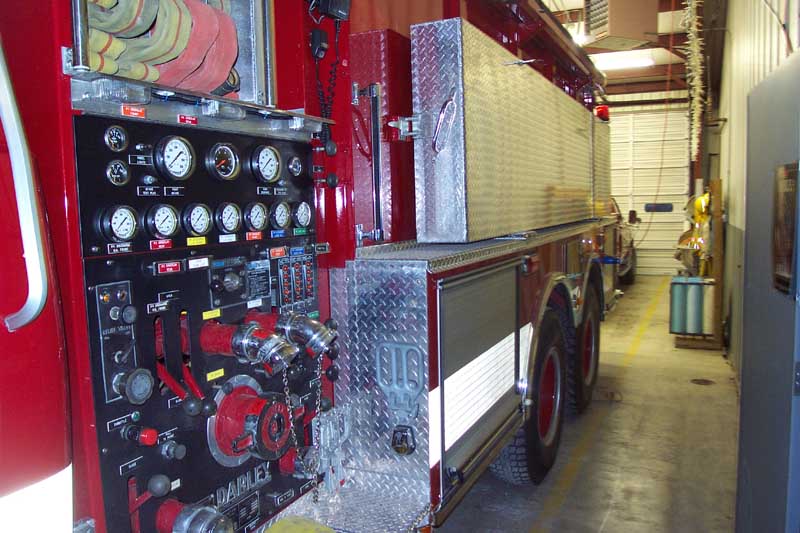

Driver's Side Exterior EquipmentTanker 11 Driver's Side Exterior.JPG (1042711 bytes)
  • Dumptank
  • 10' Hard suction segment
  • 3 air bottles (below the dump tank)

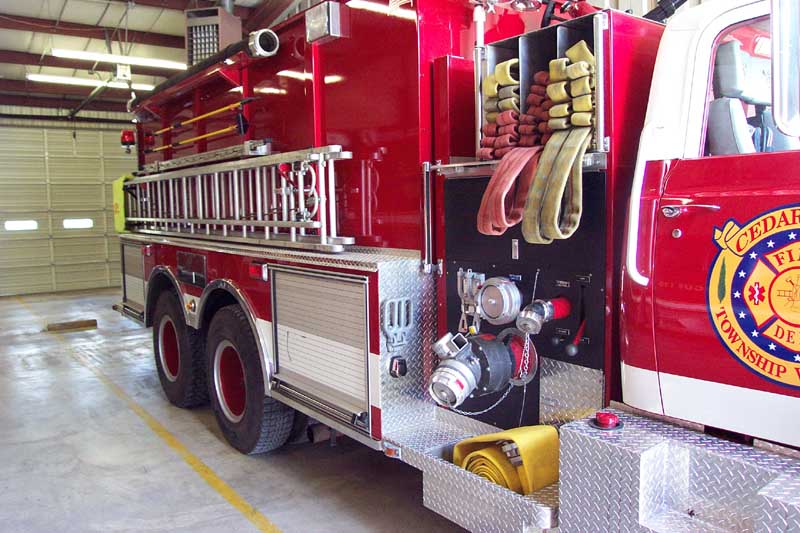

 Officer's Side Exterior EquipmentTanker 11 Officer's Side Exterior.JPG (1135682 bytes)
  • 10' Hard suction segment
  • Pike pole
  • Closet hook
  • 10' Attic ladder
  • 14' Roof ladder
  • 24' Extension ladder

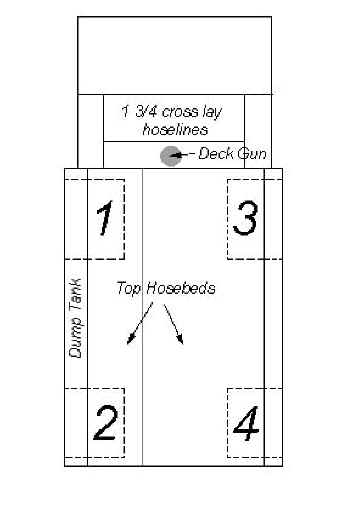

Top hosebedsTanker 11 Top Hosebeds.JPG (1160415 bytes)
  • 800' of 4" hose with storz connector
  • 600' of 2 1/2" hose (dead load)

Requirements for checking off on Tanker 11

  1. Proper pulling and loading of hand line
  2. Operation of lighting equipment
  3. Set up supply line to another vehicle
  4. Knows how to hook a hydrant
  5. Knows how to set up drafting equipment
  6. Knows how to fill tank from hydrant
  7. Location of compartment equipment
  8. Knows how to take off and set up ground master stream device
  9. Dump tank setup/unloading and loading dump tank
  10. Dump valve operation
  11. Use and placement of extension chutes
  12. General idea of hose size and length on vehicle
  13. Operation of radios and siren
